出售二手汽车冲压线/汽车发动机生产设备

 下面是最近几个月美国汽车生产工厂拍卖。各种机器和加工设备和生产线出售。请详细研究，如有兴趣，请进一步联系。也请告知你们需要的设备或生产线要求。祝商祺!

A. 美国汽车生产厂设备拍卖:
Multi Million Dollar Tool & Die FacilityStamping facility
Featuring/部分设备
•(2) Ingersoll 5-Axis Masterhead CNC Bridge Mills
•(2) Toshiba 5-Axis CNC Horizontal Boring Mills
•Droop & Rein / Ingersoll Bohle Boring Mills
•(3) Danly 2000 Ton 216” x 108” Transfer Presses
•Schuler / Komatsu / IHI Transfer Presses
•Line Presses to 180” x 96”
•Hydraulic Spotting Presses
•Coil Feed Lines
•CNC Vertical Machining Centers
•Radial Arm Drills
•P&H Bridge Cranes to 80 Ton Capacity
•Press Brakes, Shears & Ironworkers
•Toolroom Equipment
•Robots
•Rolling Stock including Drott Straddle Crane
•Kitchen/Hospital/Office Equipment

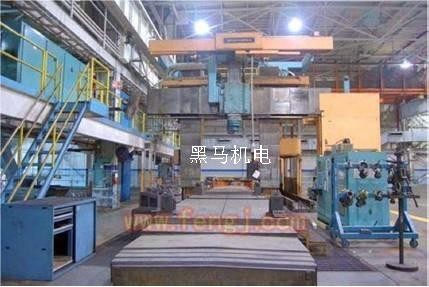

1. 20米长英格索5轴数控加工中心
Deion
INGERSOLL 5-AXIS CNC ADJUSTABLE RAIL MACHINING CENTER; S/N 25785; Between Columns 3900 mm
(153.5"), Height Table to Spindle 3250 mm Max (128")/ 800 mm Min (31.5"), Table 1 & 2 - 4500 mm x 3500 mm
(177.2" x 137.8"), Length over Joined Tables 9750 mm (383.9"), Bed Length 20500 mm; Travels: X (Crossrail) - 2450
mm, Y (Table) - 10,470 mm, Y (Head) - 587.5 mm, Z (Ram) 975 mm, B (Nutator) 360 Deg Cont Rotation, C (Index
Drum) 360 Deg Cont Rotation; 120 HP Masterhead, Nine (9) Spindles including Nutator, Allen Bradley Series 8200 CNC
Control,

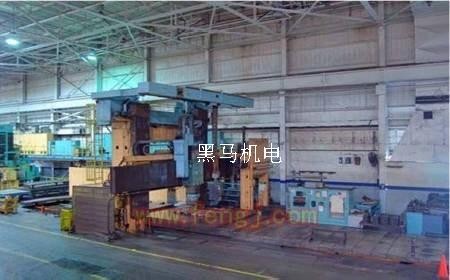

2. 20米长英格索5轴数控加工中心
Deion
INGERSOLL 5-AXIS CNC ADJUSTABLE RAIL MACHINING CENTER; S/N 25779; Between Columns 4310 mm
(170"), Height Table to Spindle 3250 mm Max (128")/ 800 mm Min (31.5"), Table 1 & 2 - 4010 mm x 2508 mm (158" x
98.75"), Length over Joined Tables 9750 mm (383.9"), Bed Length 20500 mm; Travels: W (Crossrail) - 2450 mm, X
(Table) - 9,450 mm, Y (Head) - 487.5 mm, Z (Ram) - 1000 mm, B (Nutator) 360 Deg Cont Rotation, C (Index Drum) 360
Deg Cont Rotation; 120 HP Masterhead, Spindle Speeds 1150-2500 RPM, Eight (8) Spindles including Nutator S/N
25780-45; Allen Bradley Series 8200 CNC Control,

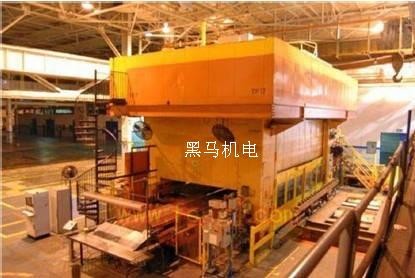

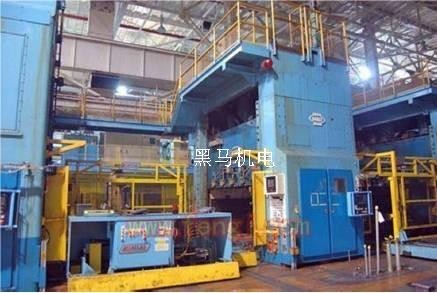

3. 2000吨DANLY压机/多台
Deion
DANLY SE4-2000-216-108 TRI AXIS 2000 TON STRAIGHT SIDE TRANSFER PRESS (TP17); Stroke 30", Strokes
per Minute 12-24 Variable, Dual Rolling Bolsters 108" x 216", Shut Height to Carrier 54", Motorized Adjustment 2",
Micro Inch Drive; Verson Electronic Transfer Feed Model ETF-42-12-10, Transfer Stroke 42" Max, Clamp Stroke 12"
Max, LIft Stroke 10" Max; Exit Conveyor
4. 1250 吨DANLY压机/多台
Deion
DANLY U4-1250-180-96 1250 TON UNDERDRIVE STRAIGHT SIDE 4-POINT PRESS (G-5 PRESS); Stroke 36",
Strokes per Minute 16, Bed 96" x 180", Shut Height 84", Motorized Adjustment 30", Rolling Bolster, Drive 150 HP, Inch
Motor 50 HP
5. 20-30吨双轨龙门吊/多台
Deion
CONLIFT 20 TON DUAL GIRDER GANTRY CRANE; Crane 4-2, Span 20 Approx, Electric Hoist, 6-Way Pendant
6. 3000 吨DANLY压机/多台/工作台8.4*3米
•Danly Model S4 3000-Ton Transfer Press, (1982); 28” Stroke, 9-18 Strokes/Minute, 56-64" Shut Height, 332” X 120”
Bed Size, Air Cushion, Air Clutch, Roll-Out Bolster, Micro Engine Drive, Pit Mounted (BT#712951)
7. 2000吨Clearing双压机/工作台6*2.4米
•Clearing Model TS8 2000/1000-Ton Dual Ram Transfer Press, (1984); 28” Stroke, 9-18.5 Strokes/Minute, 56-64" Shut
Height, 234” X 96” Bed Size, Air Cushion, Air Clutch, Roll-Out Bolster, Micro Engine Drive, Pit Mounted
8. 2500 吨DANLY压机/多台/工作台6.4*2.7米
•Danly Model S4 2500 Ton Straight Side Press (1970), 252” X 108” Bed Size, 8” Adjustment, 28” Stroke, 5-16
Strokes/Minute; With 1994 AFC Feed System (50,000lb X 72”X 0-200 FPM)
9. 2000吨Clearing压机/工作台4.7*2.7米
Clearing Model S4-2000-186-108 2000-Ton Blanking Press
■12” stroke
■63” shut height
■12” adjustment
■10-40 Strokes/Minute
■186” X 108” bed size
B. 全套汽车发动机生产设备拍卖
Complete Engine Manufacturing Facility with Intellectual Property
Featuring
Line Capacities
• 2.7L ENGINE LINE: Displacement/Power: 2.7L; 6-Cylinder, Aluminum, Gasoline/Petrol; 24-Valve, DOHC, dVVT,
Electronic Throttle;
Capacity of 95 Engines Per Hour; Year of Installation: 1996
• 3.5L ENGINE LINE: Displacement/Power: 3.5L; 6-Cylinder, Aluminum, Gasoline/Petrol; 24-Valve, SOHC, Electronic
Throttle;
Capacity of 60 Engines Per Hour; Year of Installation: 2002
C. 全套汽车变速箱和动力传动生产设备拍卖/几家不同地点工厂
Featuring
Over 6 Million Sq/ft of manufacturing space with over 7000 lots of State of the Art Multi Million Dollar Transmission
Facility including gear hobbers, gear shavers, gear shapers, spline rollers, CNC machining centers, turning centers,
centerless grinders, screw machines, stamping presses, feed equipment, fabrication equipment, tool room equipment
thousands of lots of vidmars, crib itemsmuch much more
有Powertrain全套汽车动力传动生产和 Transmission Plant 全套汽车变速箱 以及 汽车总装厂拍卖
C. MAGNESIUM DIE CAST MACHINES
超大型镁合金压铸机和生产线拍卖
