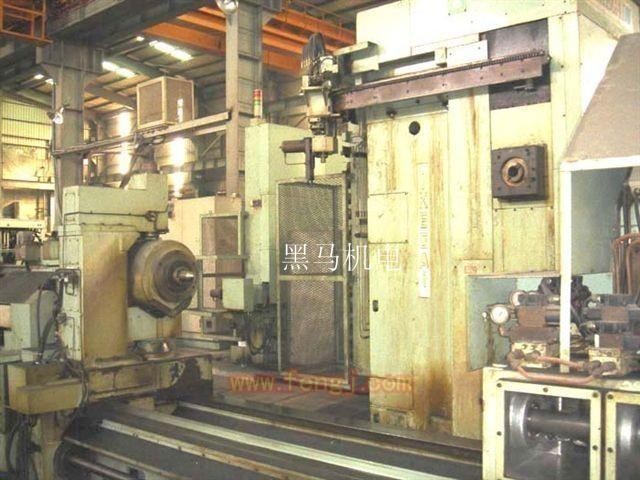

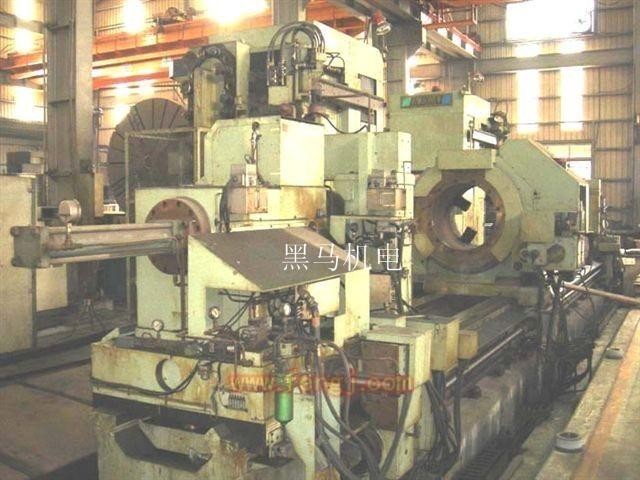

出售二手IKEGAI池貝两端複合切削加工WFT870

 年式：1997

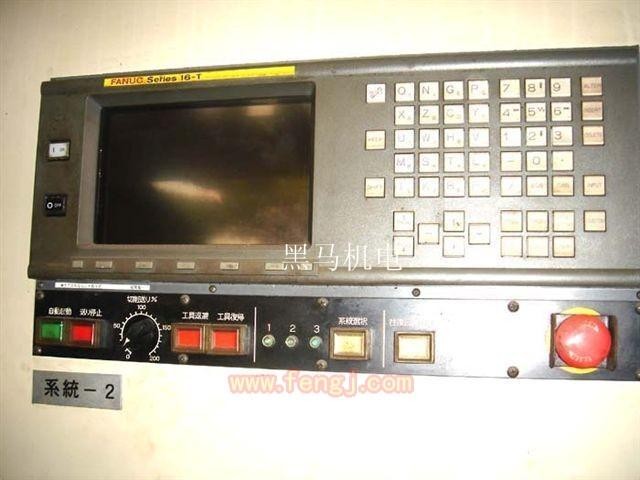

 系統：FANUC-16T x 2

 ATC：主刀庫 左右：各40把(車削20  銑削20)



           副刀庫 左右：各1200把(車削48  銑削72                   ROLL SIDE WORKING MACHINING CENTER
MAKER; IKEGAI
MODEL;WFT870
YEAR; 1997
SYSTEM; FANUC-16T (DOUBLE SIDE CONTROLLER HAVE IT)
ATC; MAIN BODY 40EA (SUB ATC; 120EA)---DOUBLE SIDE
CENTER ROLL SUPPORT---CNC CONTROL(INDEX)
1)WORK SPEC.
CHUCK DIA. 270-800mm
WORK CENTER; 1900-7000mm
MAIN SPINDLE POWER; 1340kg-m
MILLING SPINDLE OUT POWER; 26Kw

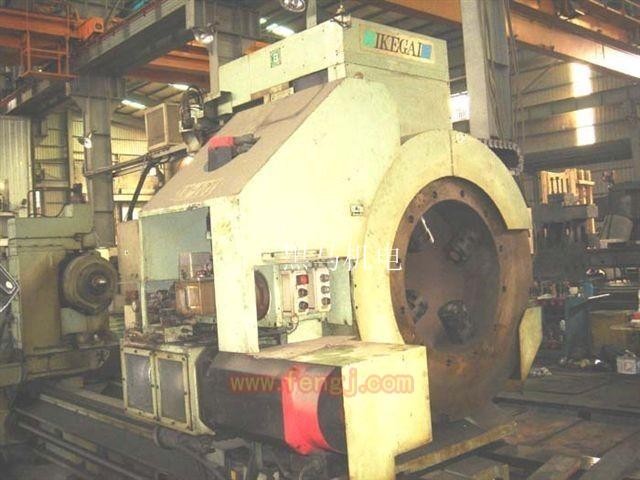

2)MAIN SPINDLE HEAD
MAIN SPINDLE THROUTH HOLE DIA.; 820mm
MAIN SPINDLE INNER DIA.; 1060mm
MAIN SPINDLE TURNING SPEED; 300RPM
3)CARRIAGE (LEFTRIGHT--DOUBLE TYPE)
  RAM HEAD TYPE
  RAM SIZE; 320X320
  MILLING TAPER; NT50
  MAIN TURNING SPEED; 20-1200RPM
  TOLL CLAMP
  ANGLE HEAD
    TURING SPEED; 13-800RPM
    TOOL CLAMP
4)TAIL STOCK
   TAIL---BODY NC CONTROL TYPE
   NO.2 TAIL---BODY NC CONTROL TYPE
   QUILL DIA.; 260
   WITH HYDROULIC CLAMP TYPE
5)WORK SCROLL CHUCK
  V TYPE
  DIA. 160-600mm
  UPPER SLEEVE; HYDRO TYPE
  LOWER SLEEVE; NC COMMEND TYPE
6)CARRIAGE STROKE(X1, X2 SPINDLE); 550mm
   SADDLE UPDOWN(Y1,Y2); 950+ATC STROKE
   COLUMN LEFT TO RIGHT (Z1,Z2); 4000+ATC STROKE
   MAIN SPINDLE INDEX(C SPINDLE); 1/1000 DEGREE
   MAIN SPINDLE ENDEX(STOPPER METHOD); 90 DEGREE
   CHUCKOR OUT (A2 SPINDLE); 85mm
   TAIL-STOCK; TAIL LEFT TO RIGHT STROKE(W1,W2);  TAIL---7000mm, NO.2
TAIL---3500mm
7)ACCESSORY
  AAC ATTACH---CHANGE HEAD 3TYPEx2EA(LATHE HEAD, ANGLE HEAD, PLATE)
MACHINE SIZE; 24100(L)X8000(W)X3600(H)
